Description

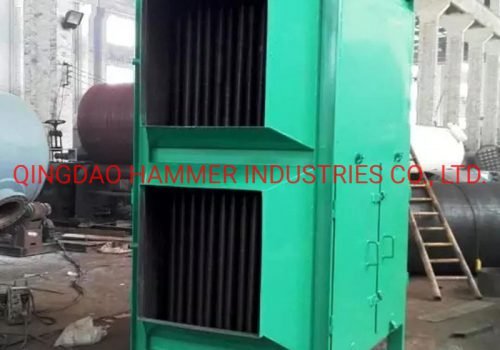

Steam generator for oil heater is special designed for oil heaters. when hot thermal oil was heated to 300C ,but no requirement for the workshop processing machines,we can open this Steam generator to use hot thermal oil to get steam and use these steam for other porpose.
Working principle:
high temperature thermal oil was pumped into the steam generator pipe banks, water in the steam generator pipe banks is heated by thermal oil and become steam. high temperature thermal oil become cool thermal oil and go back to oil heaters and heated again. steam will be collected in the steam generator drum and output to the certain place.
| Capacity (T/h) vertical type | 0.15 | 0.3 | 0.5 | 0.8 | 1 | 1.5 | 2 |
| heating area (m2) | 7.5 | 12 | 25 | 32 | 40 | 52 | 60 |
| Capacity (T/h) Horizontal type | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 |
| heating area (m2) | 108.8 | 130.6 | 167.1 | 203.6 | 240.1 | 276.7 | 313.2 |
Packing and shipping:
1. Way of delivery: by Sea or Railway or truck based on needs
2. Shipping model: by normal container and flat rack or bulk cargo based on differnent capacity. We have stable and experienced cooperate shipping company, and we will suggest suitable container.
3. Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods.
4. Packing: nude for boiler main part in nude, accessories in export-use wooden box.
5. Payment Terms: T/T, LC; 30% deposits; 70% balance before delivery.
FAQ:
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory established in 1983 in Qingdao.
Q:How to choose a boiler type ?
A: Generally we should confirm the boiler type (steam or hot water),capacity,pressure(or output,temperature)and fuel(coal, biomass, gas or oil) of the boiler.
Q: How long is the warranty time for the boilers?
A: Based on highly responsible for your esteemed company, due to equipment itself failure, our company provides one year free maintenance.
Q: How about the installation ?
A:We could offer you 2 proposals.
i)Guide installation
Our company arranges 1-2 staffs to guide the installation of boiler on site , fully guarantee the installation quality.
ii)Staff installation
Our company is in charge of installation process, only your company to provide accommodation, round-trip cost and pay the wages of workers.
Q: Could you offer some wear parts?
A: Our company provides a set of tools for free, such as wrench ,gasket used for Convenient maintenance.
Q: What’s your MOQ?
A: 1 set, if you purchase more, you will get a fairly favorable price.
Q: Do you have any Certificate?
A: Yes. We have ISO9001 & ISO14001 certificate. If must,we could help you get CE ASME or AS certificate.
Q: What is your payment term?
A: T/T, L/C is very well used.
