Description

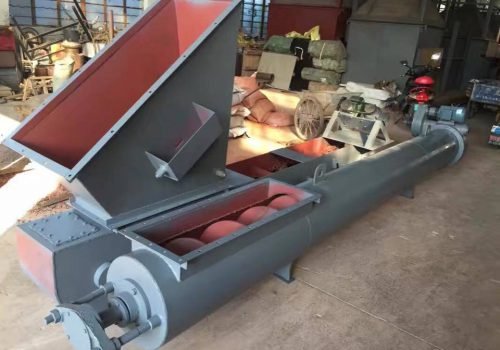

Screw Type Slag Remover is the device to take out of boiler burned fuel slag from boiler. it is easy to control and can remove all slag from boiler quickly and safely. it is also have water cooling system to cool the hot slag to avoid the damage for this hot slag.
| Model | Suitable for Boiler | Body Length(mm) | Body Inner Dia X thickness(mm) | Motor Power | Slag hopper Size(mm) | Oversize (mm) |
| CZX-3.1 | 1-4TPH | 3100 | Φ400X7 | 1.1KW | 1650X630 | 3710X900X1800 |
| CZX-3.7 | 5-6TPH | 3700 | Φ400X7 | 1.1KW | 1742X830 | 4310X1000X2000 |
| CZX-4 | 6-8TPH | 4000 | Φ400X7 | 1.5KW | 2430X930 | 4610X1200X2000 |
| CZX-4.2 | 8-10TPH | 4200 | Φ400X7 | 1.5KW | 2430X930 | 4910X1300X2000 |
| CZX-4.3 | 10TPH | 4300 | Φ400X7 | 1.5KW | 2430X1080 | 4910X1300X2000 |
| CZX-4.5 | 10TPH | 4500 | Φ400X7 | 1.5KW | 2530X1180 | 5110X1300X2000 |
| CZX-4.6 | 15TPH | 4600 | Φ400X7 | 1.5KW | 2530X1180 | 5210X1300X2300 |
| CZX-4.9 | 15TPH | 4900 | Φ400X7 | 1.5KW | 2730X1180 | 5510X1300X2500 |
| CZX-5.2 | 20TPH | 5200 | Φ400X8 | 1.5KW | 2930X1180 | 5810X1300X3000 |
