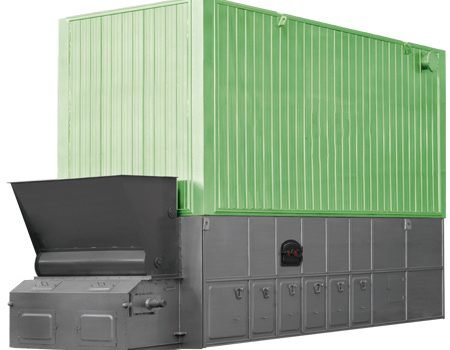

Coal/Biomass/Bagass/Coco Nut Multi Fuel Single Drum Insutries Steam Boiler
DZL series water-fire tube steam boiler 1. Airfoil flue desgin,Cool the high temperature tube sheet to avoid subcooled boiling,lower the head load of the boiler bottom,avoid the crack of the…
Model NO.：DZL
Function：Water Boiler, Steam Boilers
Fuel：Coal-Fired
Installation：Packaged Boiler
Structure：Fire Tube
Media：Steam
Water Circulation：Forced Circulation
Drum Placement：Horizontal Boiler
Pressure：High Pressure
Manufacturing Level：A
Burning Style：Chamber Combustion Boiler
Usage：Industrial
Trademark：QD Hammer
Transport Package：Naked
Origin：Qingdao
HS Code：84021900
Basic Info:
US$20,000.00-200,000.00 / Piece FOB Price:
1 Piece Min. Order:
Qingdao, China Port:
10sets/Month Production Capacity:
L/C, T/T, D/P, Western Union, Paypal, Money Gram Payment Terms:
84021900 HS Code:
Category & Tag:
Category: Boiler
Coal/Biomass/Bagass/Coco Nut Multi Fuel Single Drum Insutries Steam Boiler

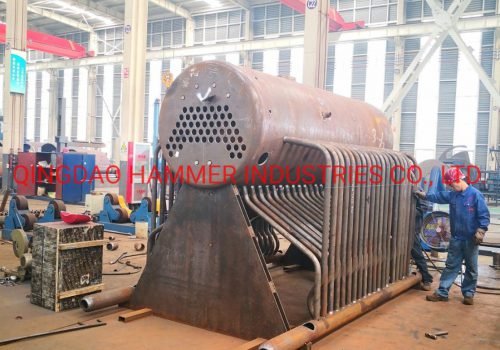

DZL series water-fire tube steam boiler
1. Airfoil flue desgin,Cool the high temperature tube sheet to avoid subcooled boiling,lower the head load of the boiler bottom,avoid the crack of the tube sheet,avoid the deformation of the bottom.
2. Arch tube desgin, make the tube sheet more flexible to lower the tube end weld heat stress. cancel bacing pieces to avoid the crack of tube sheet.
3. Spirally corrugated tube desgin,enhance heat transfer,reduce the size of the pot, make it more flexible to the tube end heat stress, avoid fouling,avoid the crack of tube sheet.
| Name | DZL4-1.6-AII | DZL6-1.6-AII | DZL8-1.6-AII | DZL10-1.6-AII | DZL15-1.6-AII | DZL20-1.6-AII | DZL25-1.6-AII | DZL30-1.6-AII | DZL40-1.6-AII |
| Rated Evaporation Capacity(T/H) | 4 | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 40 |
| Rated working pressure(Mpa) | 1.6 | ||||||||
| Rated steam temperature(ºC) | 204 | ||||||||
| Feed water temperature(ºC) | 20 | 105 | |||||||
| Radiation heating area(m²) | 12.24 | 19.2 | 22.1 | 24.15 | 34.5 | 53.7 | 99.2 | 112.6 | 125.88 |
| Convection heating area(m²) | 89.55 | 115.3 | 128 | 168.2 | 339.9 | 411.8 | 457.8 | 628.6 | 759.61 |
| Economizer heating area(m²) | 28.16 | 52.3 | 52.8 | 130.8 | 150.4 | 188 | 295 | 413 | 729.12 |
| Grate effective area(m²) | 5.18 | 7.7 | 9.07 | 11.53 | 16.24 | 22.84 | 24.7 | 26.88 | 35 |
| Designed fuel | Smoke Coal AII | ||||||||
| Coal consumption(kg/h) | 615 | 870 | 1153 | 1440 | 2165 | 2868 | 3550 | 4254 | 5650 |
| Boiler Design efficiency(%) | 79.45 | 78.26 | 81.63 | 80.7 | 81.5 | 82.1 | 82.2 | 82.5 | 81.84 |
| Max Part Transporation size(m) | 7.55X2.95X3.60 | 8.1X2.95X3.70 | 8.84X3.00X3.70 | 7.50X3.50X3.70/ 7.70X2.30X2.60 | 7.53X3.37X3.70/ 9.20X3.37X2.50 | 8.11X3.37X3.51/ 9.64X3.77X2.60 | 8.77X2.60X2.74/ 12.20X8.02X8.90 | 9.30X2.60X2.85/ 12.2X8.02X9.7 | 9.46X2.9X3.1 |
| Max Transportation weight(Ton) | 32 | 44 | 48 | 27/19.5 | 28/26 | 30/29.5 | 32/35 | 36/37 | 40 |
Our Service
Pre-sale service:
We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
After-sale service:
1.provide full range of original spare parts.
2.Engineers abroad installation and commissioning service is available.
3.Our engineers will held a training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
